530 Pcs Heating Shrink Sleeve Set Heat Shrinkable Insulation Electrical Cable Tube

Homewares  |  Homewares  |  31 Jan 2023
No reviews yet Write A Review
Description Details
530 Pcs Heating Shrink Sleeve Set Heat Shrinkable Insulation Electrical Cable Tube/Product Detail/Homewares
$34.99

In Stock at Supplier. Ships within 5-10 Business Days.

35 ELITE Points earned with this purchase! Earn 250 for a $10 Reward!
Not an ELITE Member? Join ELITE here


Buy Now & Pay Later With

PayPal Afterpay Zip Klarna

Shipping - See delivery options.
Postcode:
Quantity:

SEE MORE IN:

530 pieces Heat Shrink tubing Set includes an assortment of shrink sleeves for the job at hand, providing electrical insulation, mechanical protection, environmental sealing, and strain relief for applications such as back-end connector sealing, breakouts, and connector-to-cable transitions.

Specifications:

  • Large collection of heat shrink tubing 5 colours
  • Supplied Internal Diameter 1.5mm ,2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm 8.0mm and 10.0mm
  • Colour Black, Red, Yellow, Blue, Green
  • Material: Polyolefin
  • Shrinkage Ratio: 2: 1 (will maximum shrink to 1/2 its supplied diameter)
  • Operating Temperature: -55 ° C to + 125 ° C Minimum Shrink Temp: + 70 ° C
  • Full Shrink Temp: + 110 ° C Maximum
  • Tensile Strength: 10.4 Mpa
  • Dielectric Strength: 15 kV / mm
  • Flammability: Flame Retardant
  • Approvals: RoHs, CE
  • Container Size (cm): 20(L) x 12(W) x 3.5(H)

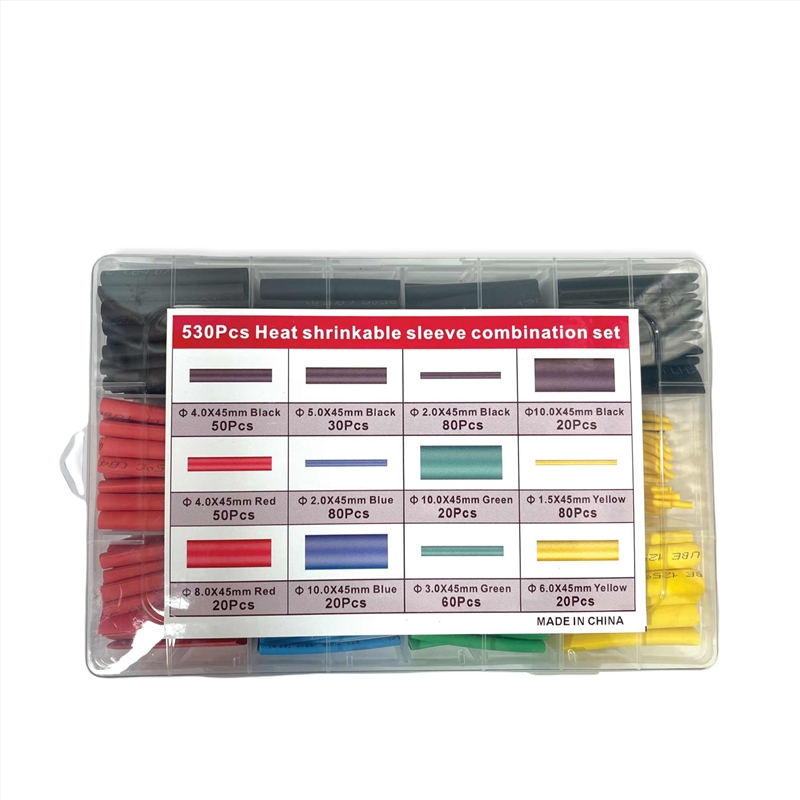

Package Includes:

(Quantity x Internal Diameter x Single Length)

  • 80pcs x 1.5 x 45mm Yellow
  • 80pcs x 2.0 x 45mm Blue
  • 80pcs x 2.0 x 45mm Black
  • 60pcs x 3.0 x 45mm Green
  • 50pcs x 4.0 x 45mm Red
  • 50pcs x 4.0 x 45mm Black
  • 30pcs x 5.0 x 45mm Black
  • 20pcs x 6.0 x 45mm Yellow
  • 20pcs x 8.0 x 45mm Red
  • 20pcs x 10.0 x 45mm Green
  • 20pcs x 10.0 x 45mm Blue
  • 20pcs x 10.0 x 45mm Black
  • Packaged in 1 x Plastic Compartmentalised Container

Title: 530 Pcs Heating Shrink Sleeve Set Heat Shrinkable Insulation Electrical Cable Tube

Format: Homewares

Release Date: 31 Jan 2023

Type: Tooleroo

Sku: 2874926

Catalogue No: V238SUPDSZ3960

Category: Homewares
